Wireless Network Adapter/
Access Point
EXAP-2400-PHANTOM



Model: EXAP-2400-PHANTOM

The EXAP-2400-PHANTOM wireless communications device is designed for use in wireless LANs in offices.

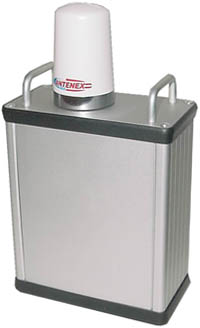

The adapter is equipped with the Phantom antenna manufactured by Antenex. The hemispherical antenna pattern makes it possible to use the EXAP-2400-PHANTOM as a network adapter or access point.

The EXAP-2400-PHANTOM is used as a network adapter where a powerful radio signal is needed—in metal frame, brick, and reinforced concrete buildings, in buildings with partitions covered with plaster on metal lath, in locations with large groups of people, and where moving machinery and mechanisms are present in the radio visibility zone.
The EXAP-2400-PHANTOM has proven itself outstandingly as an access point in places where a large number of remote hardware devices need to be connected to a network, or where network segments located on different floors of a building need to communicate.

Product Specifications

IEEE Standard(s)

802.11b

Max. Data Transmission Rate

11 Mbps

Network Cable Connector

RJ-45 (Ethernet 10/100)

Wireless Frequency Range

2.4 GHz to 2.473 GHz

Media Access Control

CSMA/CA with ACK

Modulation Technology

DSSS with CCK/DQPSK/DBPSK

Receiver Sensitivity

85 dBm to 95 dBm

Transmitter Power

19 dbm

Operating Range (line-of-sight)

2 km (1.2 miles)

Operating Range (non-line-of-sight)

150 m (500 feet)

Security

64/128-bit WEP

Drivers

Not needed

Device Management

Web-browser

Antenna Cable Connector

NMO – mount

Housing

Aluminum

Dimensions (without antenna)

150 mm x 100 mm x 55 mm (6” x 4” x 2.2”)

Weight (without antenna)

0.3 kg (0.7 lb)

Operating/Storage Temperature

–40° С (–40° F) to +75° С (167° F)

Warranty

1 year

Includes

  • Wireless network adapter/access point EXAP-2400-PHANTOM

  • External power supply with 12 – 48V adapter

  • Mounting hardware

  • 3 dBmeg Antenex® Phantom antenna
