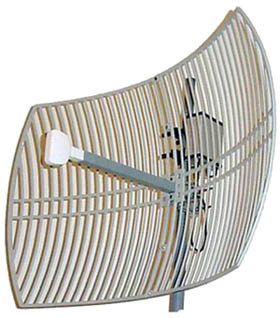

2.4 GHz Directional Parabolic Antenna PAWDC24



Model: PAWDC24

The PAWDC24 antenna is designed for use together with the EXAP-2400-X wireless hardware for long-range communications bridges, relay stations (repeaters), and in MMDS broadband systems.

The grid type antenna reflector is strong, light-weight die-cast aluminum alloy. The epoxy coating is water-repellant and keeps precipitation from building up on the antenna. The grid type reflector makes it possible to use the antenna in areas with high winds and heavy precipitation.
The dipole feed is made of UV-resistant ABS plastic with a guaranteed service life of at least 20 years. The removable design of the dipole feed makes it possible to reduce the size of the antenna for simpler transportation to the installation site.

The antenna is manufactured by Pacific Wireless.

Product Specifications

Wireless Frequency Range

2.4 GHz to 2.5 GHz

Gain

24 dBi

Input Power

50 W

Impedance

50 Ω

Beam Angle

8 deg

Cable Connector

N (female)

Reflector

Epoxy coated die cast aluminum alloy grid

Dimensions

1070 mm x 610 mm х 406 mm (42.8 x 24.4 x 16.2)

Weight

2.4 kg (5.3 lb)

Pole Diameter

50 mm (2)

Operating/Storage Temperature

40 С (40 F) to +75 С (167 F)

Warranty

1 year

Includes

  • Antenna PAWDC24

  • Mounting hardware
